THERMOSOL RANGE - PT-J

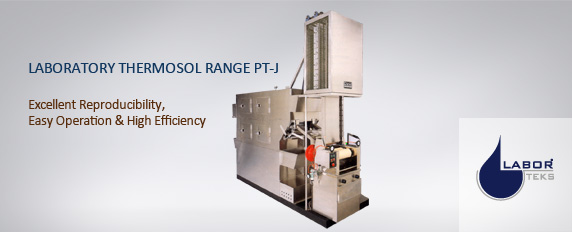

LABORATORY THERMOSOL RANGE
Excellent Reproducibility, Easy Operation & High Efficiency

Click here for more information about the product.

LABORATORY THERMOSOL RANGE

Machine Features

All Stainless Steel No Guide Cloth Non-touch Continuous Type One-Cycle Thermosoling Process

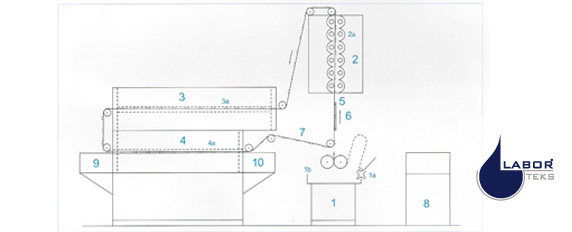

PADDER—Infra-Red Pre-Heater—Inter-mediate Dryer-THERMOSOLING

Description

The test fabric padded by the horizontal pneumatic-type Padder is held on its both ends by special clip bars; this complete sample holder is again mounted on the chains which are running endlessly through the Machine.

The test fabric is firstly led though the Infra- Red Pre-Heater, then the Intermediate Dryer and finally the Thermosoling Zone. After testing, the test fabric is taken off automatically from the carrying chains and drops down into the reserve box.

Technical Specifications

Applicable Size of test fabric: Max. 230mm by 400mm L

PADDER

• Type of Padding Mangle: Horizontal
• Size of Padding Rollers: 125mm ф by 300mm wide (x 2)
• Material Hardness: 70° shore
• Roller Weighing System: Pneumatic Diaphragm Type
• Max. applicable Nip Pressure: 3 tons at 5 kg/cm2
• Accessories:
  Air Pressure Regulators, Pressure Gauges, Air Filter, Water Shower Head, Safety Devices
• Fluid Bed:
  100 cc Capacity with 4 pcs. Cross and Rotary Type Guide Bars
