Rapid Color - Dyeing Machine

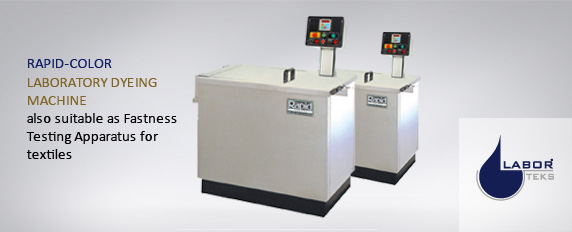

LABORATORY DYEING MACHINE

also suitable as Fastness Testing Apparatus for textiles

Click here for more information about the product.

RAPID COLOR

The most versatile and economic LAB DYEING MACHINE

• It incorporates the experience we have gained for many year sinvoliving in the production of Laboratory Dyeing Machines.
• The machine possesses great ridigity and torsional strength. The bath, bath-lid, cladding and head-up support pillars are all produced of high-grade stainless steel of suitable gauge. High quality thermal-resistant material is used for bath insulation.

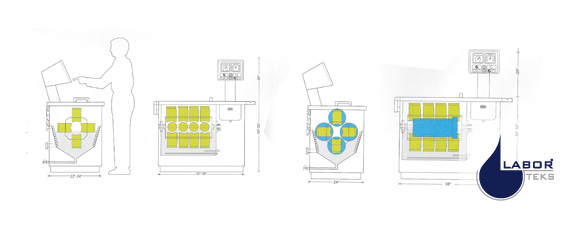

• The control panel is also designed according to average human height to facilitate oper­ation Therefore, no platform whatsoever is required for the machine.
• It is also able to conduct fastness tests with satisfied results.

Special Features

• Dyepots can easily be set and released by pressing and turning them 15° Each pot can be used individually and set in and out of the dyebath anytime without disturbing
  other dyeing tests (as showing in Fig) resulting in the following:
  1) Because dyepots are set individually in and out of the dyebath, it shortens a great deal waiting time and Rapid dyeing can be acheived such that speed of dyeing tests is double than that of the conventional type.
  2) Various dyeing and/or chemical tests can be carried out e.g. Dispersing, Levelling tests, etc.
  3) Unlike conventional types, the machine can carry out step dyeing tests as well which contributes greatly to help selection of dyes of similar exhaustion rate in order to avoid possible bad ending effects.
• Different sizes of dyepots are available for various types of samples, for examples:
  1) 450 cc Dyepots for large pieces of above 40 gr., Also for Dry-Cleaning, wash-fastness tests and two-part dyeing tests.
  2) 150 cc Dyepots for lower liquor ratio dyeing tests & etc.
  3) 1000-9000 cc Dyepots also for dyeing test of Zipper, Panty hose, Ropes and cords.
• Besides dyeing tests, the machine can perform wash-fastness tests and dry-cleaning tests, etc.
• Dye liquor capacity from 50 cc to 400 cc or more, liquor ratio from 1:5 to 1:100 variable.
• Weight of samples from 3 gr. To 40 gr. Or we also design Jumbo size dyepots for larger samples.

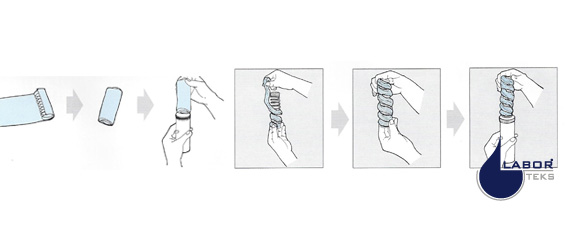

• To secure dyepots, it can be easily achieved without using lock handle. Specially designed packing of the pot can last for a long time, no staining is guaranteed. (As showing in Fig)
• Dyepots are produced by pressing, no welding spots or cracks exits such that perfect eyeing of test samples are guaranteed.
