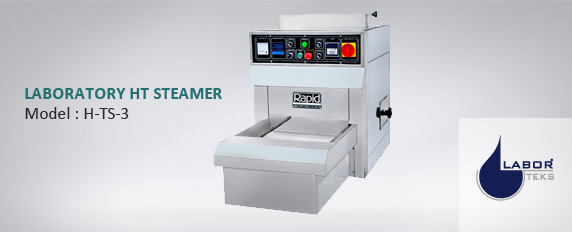

LABORATORY HT STEAMER

Model : H-TS-3

Click here for more information about the product.

• Saturated and HT-Steamer, suitable for the chemical and dyestuff industry, finishing plants, research institutes and general textile industry.
• Basic design as MINI-DRYER, model R-3, owing the wide adjusting ranges regarding temperature, humidity, dwelling time, this apparatus can be used for

  -Electric heating for drying, curing 20°C-250°C
  -Steaming with saturated steam 102°C±2°C
  -HT steaming at temperatures 100°C-250°C

• Moisture controller with regulation 10-100% and steam generator can be supplied on request.
• Suitable for discontinuous operation in conjunction with Lab Padder, type AIR PAD.

Special Features

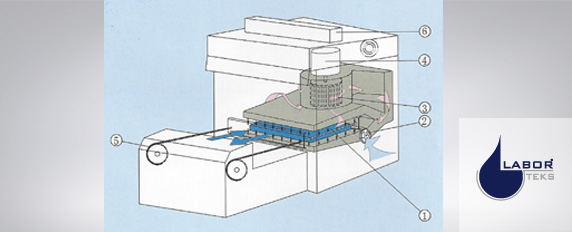

1. Since superheated steam is circulated in the air-tight steaming chamber, even steam distribution is obtainable, in order to maintain uniform temperature, automatic temperature controlling device is provided.

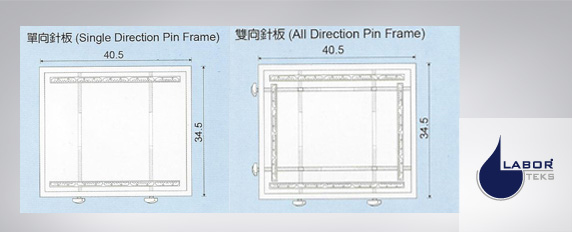

2. Special-designed pin frame can easy holds all types of sample fabrics, both woven and knitted, the tension is adjustable in length and in width.

3. The ceiling is slanted and an additional heating is fixed at the entrance slit in order to avoid a formation of drop water.

4. Automatic feeding and delivery of test samples, control of dwell time also automatic.

5. he machine all stainless steel manufacture and all interior parts on the chamber are made of SUS 316.

Specifications

1. Test fabric size : 350 x 400 mm (1 Test Fabric x 1 Time)

2. Temperature range : 20 - 250 °C

3. Temperature control : Digital display automatic temperature controller

4. Dwell time      : 10 sec - 60 min. Audible alarm for end of test

5. Steam Consumption : 5 kg/hour for indirect steam

           :15 kg/hour for direct steam

6. Circulating fan   : 1/4 HP fan motor

7. Dimensions    : (76+56)cm x 66cm x 89cm

8. Electricity     : 380Vx 3PH x 6KW
