ECO DYER

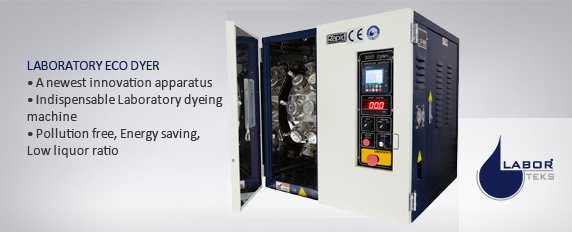

LABORATORY ECO DYER
A newest innovation apparatus
Indispensable Laboratory dyeing machine
Pollution free, Energy saving, Low liquor ratio
ECO DYER NEWEST AND AFFORDABLE LABORATORY DYEING MACHINE
Click here for more information about the product.ECO DYER, which is electric heat conducting type laboratory dyeing machine, the advanced heat conduct design offers not only advantages of a Glycerin type dyeing machine, but also provides features of an infrared type dyeing machine, the new design provides improvements on the two conventional designs.
Its specially designed rotary system allows users to achieve even and crease-mark- free dyeing results, even at a low liquor ratio.Users can easily add chemicals either in powder or liquid form during running of dyeing process by the unique “ ONE TOUCH “ injection device. Moreover, dyeing reproducibility is ensured as the chemical addition process simulates features of the bulk dyeing process.
SPECIAL FEATURES
Lowest power consumption
No sensor pot is required in the ECO DYER, so comparing to traditional IR type dyeing machine, no more temperature sensor’s problem.
Ready to use
No water piping is required. Using dual air cooling system for faster cooling.
Friendly design
Not only dye pot, but also pot position is numbered in order to avoid operating errors. Dye pot can easily be loaded and unloaded from the rotary drum. Furthermore, complete with sight glass for easy observation of pot motion.
Modernize laboratory by installing ECO DYER
ECO DYER with modernized appearance, no fume pollution and Glycerin free, pleasant working environments and attractive laboratory are assured.
Simple and easy operation
ECO DYER's operating habit same as Glycerin type dyeing machine, simple and easy to use, for example, During the running process, individual dye pots can be loaded or unloaded without interruption of temperature. Different amount of dye liquor can be performed in one lot of dyeing process— etc,
S.S 316L made dye pot
Dyepots are made of stainless steel 316L, and are produced by pressing, no welding spots or cracks exist, chemical resistance and perfect dyeing are guaranteed.
Even dyeing
The rotary drum has an infinitely variable drive, also provide rotation 360 degree, allows users to achieve even and crease- mark-free dyeing results, even for high density polyester
Unique design for chemical addition system
ECO DYER use " ONE TOUCH " injection system , to replace traditional syringe injection system, All syringe troubles, such as glass easier break, chemical block in the injection nozzle etc., are now history.

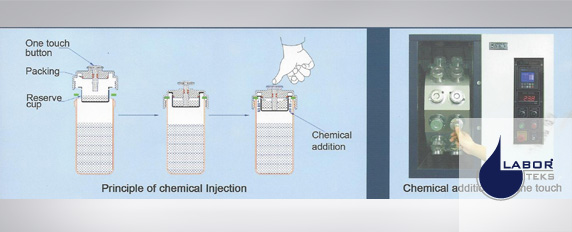

CHEMICAL INJECTION DEVICE (Option on request only)
Measuring first the required quantity of chemical solution or chemical powder by scale or pipette, then load chemical into the reserve cup of dyepot and go for dyeing process, when opening the door of the ECO DYER, the drum rotation is automatically stopped, just push the button on the top of injection lid while chemical addition is required, the chemical solution is then fed into the dyepots from reserve cup slowly as similar as bulk dyeing to avoid direct contact with the substrate. Thanks to this “ONE TOUCH “ injection system, shade leveling and repro¬ducibility are assured.
APPLICATION
The most versatile and ECO laboratory dyeing machine, suitable for general laboratory purpose under high temperature condition, such as recipe dyeing test, washing fastness test, and other laboratory R&D applications-etc, now with modern temperature control system and wide range of dye pots sizes available ensures safe and level dyeing results.
SPECIFICATION
|
■ Working temperature |
: Max. 140°C |
|
■ Rate of temperature rise |
: Max. 3.5°C/min |
|
■ Heating source |
: Electric heat -conduct |
|
■ Volume of dyepot |
: ЗООсс, 420cc |
|
■ No. of pot position |
: (ECO-24) 24 x ЗООсс pot |
|
|
(ECO-18) 18 x 420cc pot |
|
■ Control Panel |
: LCD graphic display microprocessor |
|
|
( 50 programs,50 steps ) |
|
■ Cooling system |
: Dual Air cooling design |
|
■ Power consumption |
: 4.5 KW |
|
■ Electric connection |
: 220V x single phase |
|
■ Machine dimension |
: 69 x 73 x 75 cm (LxWxH) |
|
■ Machine weight |
: About 150kg |
MODEL OF DESIGNATION
ECO - 24
I------------- NO.--- OF POT POSITION
24 : 24 x ЗООсс pot 18 : 18 x 420cc pot
Option : (Available on request only)

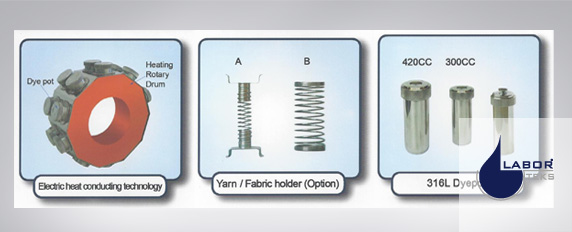

YARN HOLDER (A) and SPRING HOLDER (B)
“ ONE TOUCH ” CHEMICAL INJECTION DEVICE
|
Description |
Comparison ECO DYER vs. Traditional Lab dyeing machines |
||
|
ECO DYER |
Glycerin type dyeing machine |
IR type dyeing machine |
|
|
Power consumption |
4.5 KW |
10 KW |
6KW |
|
Heating principle |
Electric heat conducting technology |
Glycerin as heating media |
Infra red heating |
|
Pollution |
Free |
Fume pollution |
Free |
|
Cooling system |
Air |
Water |
Air |
|
Operation |
Simple and easy to use |
Simple and easy to use |
Complicated |
|
Maintenance |
Free |
Free |
Spare temp, probe, IR lamp are required |
|
Rotation speed |
Variable control |
Fix speed |
Variable control |
|
Chemical addition |
"One Touch" injection |
Not available |
Traditional syringe injection |
|
Different size of pot |
Not Convertible |
Convertible |
Convertible |
|
Appearance |
Modernized design with sight glass |
Conventional design |
Conventional design |
References
| FİRMA ADI | ŞEHİR | MAKİNE ADI | ADET |
|---|---|---|---|
| ARIKAN MENSUCAT | K.MARAŞ | ECO DYER-24 | 1 |
| CANAN TEKSTİL | GAZİANTEP | ECO DYER-24 | 1 |
| DİNARSU | ZONGULDAK | ECO DYER-24 | 2 |
| ELVAN TEKSTİL | ÇERKEZKÖY | ECO DYER-24 | 1 |
| FAY TEKSTİL | ÇORLU | ECO DYER-24 | 2 |
| GÜR İPLİK | GAZİANTEP | ECO DYER-24 | 1 |
| KARAN TEKSTİL | GAZİANTEP | ECO DYER-24 | 3 |
| OZAN TEKSTİL | DENİZLİ | ECO DYER-24 | 1 |
| SÖZDEMİR TEKSTİL | BURSA | ECO DYER-24 | 1 |
| BATMAZ TEKSTİL | BURSA | ECO DYER-24 | 1 |
| ERDEMSOFT | GAZİANTEP | ECO DYER-24 | 2 |
| ALTEKS | K.MARAŞ | ECO DYER-24 | 1 |
| BİLKONT | ÇORLU | ECO DYER-24 | 2 |
| DYSTAR | ÇORLU | ECO DYER-24 | 4 |
| ŞARK MENSUCAT | ÇERKEZKÖY | ECO DYER-24 | 1 |
| PALBEN TEKSTİL | ÇERKEZKÖY | ECO DYER-24 | 3 |
| TEKBOY TEKSTİL | LÜLEBURGAZ | ECO DYER-24 | 1 |
| ER-BA TEKSTİL | İSTANBUL | ECO DYER-24 | 1 |
| ARIKBEY TEKSTİL | KONYA | ECO DYER-24 | 1 |
| MENDERES TEKSTİL | DENİZLİ | ECO DYER-24 | 1 |
| EREN TEKSTİL | ÇORLU | ECO DYER-24 | 1 |
| TAN TEKSTİL | DENİZLİ | ECO DYER-24 | 4 |
| ALPTEKİN BOYA | İSTANBUL | ECO DYER-24 | 1 |
| ÇAK TEKSTİL | SAKARYA | ECO DYER-24 | 2 |
| MARMARA PAMUKLU | ÇORLU | ECO DYER-24 | 1 |
| ÇAHAN TEKSTİL | BURSA | ECO DYER-24 | 1 |
| BEYBO | ÇORLU | ECO DYER-24 | 2 |
| SAVCAN TEKSTİL | BURSA | ECO DYER-24 | 1 |
| TORAMAN TEKSTİL | ÇORLU | ECO DYER-24 | 2 |
| MARSAN | K.MARAŞ | ECO DYER-24 | 2 |
| MAYTEKS | MANİSA | ECO DYER-24 | 1 |
| HANTAŞ | BURSA | ECO DYER-24 | 1 |
| ÇMS | K.MARAŞ | ECO DYER-24 | 2 |
